YQ06015 TDS

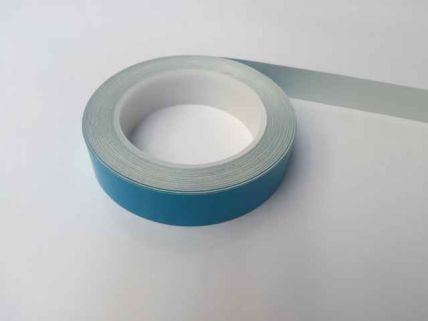

品名/料号(Product Name/Item No): 易拉伸胶(Easy Tensile adhesive film)/YQ06015;
主要特征(Features):
(1)高粘合强度(Very high boding strength) (2)优越的推出力和抗冲击力(superior push out and shock resistance) (3)长时间粘合也容易去除(easy removability even after long bonding time by streching the adhesive)
应用领域(Applications): (1)可重复拆卸电池,不损坏盖壳(L can be repeated disassembly of the battery, without damage to the cover shell) (2)电子设备制造业中的临时固定部件(Temporary fixed components in electronic equipment manufacturing industry ) (3)固定电子设备可以修补或回收零件(Fixed electronic equipment can be repaired or recycled parts )
主要成份(Material):
@@@@@@@@@@@---------合成橡胶(Synthetic rubber)
*****************---------离型纸(release paper)
5.特性(Characteristics) | |||||||
项目(Item) | 单位(Unit) | 测试值(Value) | 说明(Description) | ||||
P / N 料号 | / | YQ06015 | / | ||||
adhesive胶水 | / | 合成橡胶 Synthetic rubber | / | ||||
release paper离型纸 | / | 格拉辛离型纸Grasin paper | Weight of Liner:80g/m2,Thickness of liner:72um,Color of liner:brow | ||||
Thickness Inches厚度 | mm | 0.15±0.02 | ASTMD1000 | ||||
Width宽度 | mm | 980±2 | ASTMD1000 | ||||
Length 长度 | M | 50±0.5 | ASTMD1000 | ||||
Elongation at break 断裂伸长率 | % | 1500 | ASTM D1000-04 | ||||
Tensile strength 拉伸强度 | N/CM | 9 | ASTM D1000-04 | ||||
Continuous Use Temperature耐温范围 | ℃ | -20--80 | ZL Standard | ||||
Adhesive /粘着力 | kgf/inch | >1.2 | ASTM D1000-04 | ||||
备注: | |||||||
以上数据为本司多次测试所得之平均值,供技术参考.使用者须确定此产品是否适用于某一特定用途及是否适用于使用者的应用方式,很多因素会影响产品在特定用途中的性能,若对本公司产品存有疑问,敬请联络本公司人员,以便为您提供更详尽的说明与服务。 The above data is the average value of the company's multiple test for technical reference. Users must determine whether this product is suitable for a particular purpose or whether it is suitable for the user's application, and many factors affect the performance of the product in a specific application. If you have any questions about our products, please contact our staff, to provide you with more detailed instructions and services. |
