YQ33080-G TDS

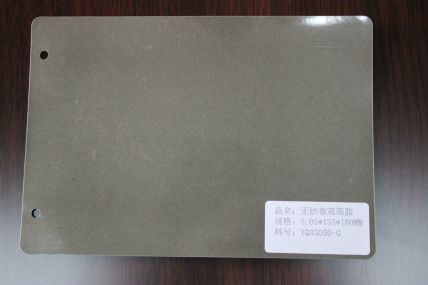

一、Product:Double coated conductive adhesive of non-woven fabrics (YQ33080-G）
二、Characteristics
（1） Added by RICH high polymer medium to reduce resistivity.
（2） Excellent conductivity. Excellent performance on conductive joint、electromagnetic shielding and ground connection.
（3） Adopt excellent acrylic adhesive resin. Excellent adhesion and ageing resistance
（4） Excellent adhesion that slightly variation during use
（5）Double sides adhesive; excellent formability; applicable for adhesion on curve surface.
三、Constuccre:
@@@@@@@@@@-------Releasing paper
*********************-------Conductive Fabric Adhesive
#############-------low resistivity conductive fiber
********************-------Conductive Fabric Adhesive
@@@@@@@@@--------Releasing paper
3.Application
Applicable for conductive joint、electromagnetic shielding and ground connection。
4. Property
Product | Double coated conductive adhesive of non-woven fabrics | Test Method |
Part No. | YQ33080-G | |
Base material | High conductive fiber | |
Base Material Characteristic | XYZ axis conductive | |
Adhesive | High conductive acrylic adhesive | |
Total Thickness | 0.08-0.09mm | ASTMD-1000 |
Color | GRAY | |
Elongation | 4.0-4.5Kg/mm | ASTMD-1000 |
Peel Off Strength (with metal plate) | 1.0KG/25mm | ASTMD-1000 |
Electric conductivity | 0.02～0.08Ω | ASTMD-1000 |
Temperature resistance：-10℃ +65℃
5. Storage:
Storage temperature: 5-30℃
Warranty period: 6 months. Keep away from direct sunlight, high temperature.
Disclaimer: We shall not be liable for any loss or damage rising for direct sunlight, high temperature(≥40℃) and high humidity（≤70%RH）.
Technical data above is for reference only. Please contact supplier for measured value.
