YQ33150-P TDS

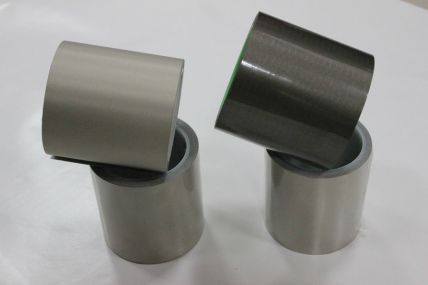

一、Product:Conductive Fabric Adhesive Tape (YQ33150-P）
二、Application:Yunqing YQ33150-P is ideal for EMI/RFI shield and gasket attachment applications. Applications include EMI shields for displays and gasket attachment to EMI/RFI cabinets and enclosures.
三、 CONSTRUCTURE
############-------- Releasing Paper
************--------- Conductive Adhensive
@@@@@@@@@@@@--------- Pet fabric
************--------- Conductive Adhensive
############-------- Releasing Paper
Item | unit | Specification | Test standard |
Part No | / | YQ33150-P | / |
Material | / | Pet Fabric | /_ |
lines | / | plain | / |
Cladding Material | / | Cu+Ni | / |
Thickness of Material | mm | 0.08±0.005 | FZ/T01003-1991 |
Thickness of faceside Adhesive | mm | 0.04±0.005 | FZ/T01003-1991 |
Thickness of backside Adhesive | mm | 0.04±0.005 | FZ/T01003-1991 |
Thickness of ALL | mm | 0.15mm±0.01 | FZ/T01003-1991 |
weight | g/㎡ | 60±10 | GB/T4669-1995 |
Width | mm | 1070±5 | GB/T4667-1995 |
Length | m | 50 | GB/T4669-1995 |
Production Function
Item | unit | Specification | Test standard |
Shielding Effectiveness | dB | 60(min)in10MHz-3GHz | SJ20524-1995 |
Surface Resistivity | Ω/Sq | ≤0.1 | ASTM F390 |
Metal Adhesion | Grade | Four above | AATCC TM8-2001 |
Peel Adhesion(03m/min) | Kgf/inch | ≥1.2 | PSTC 1 Mod |
保持力/Holding Power | 25mm×25mm/1Kg | ≥24hours | PSTC 7 Mod |
Important Notice:
All statements, technical information and recommendations related to the Seller's products are based on information believed to be reliable, but the accuracy or completeness; thereof is not guaranteed. Before utilizing the product, the user should determine the suitability of the product for its intended use. The user assumes all risks and liability whatsoever in connections with such use.
The above data is only for reference rather than any demonstrating data; otherwise the sell will not assume any liability.
Storage: please store the product in an adequately ventilated place; keep off direct sunshine and moisture. If there is any problem, please do not hesitate to contact seller's representatives.
