散热铜箔胶带具有良好的散热性，自粘性，导电性；我司目前主要厚度有0.03mm,0.05mm,0.07mm,0.09mm,

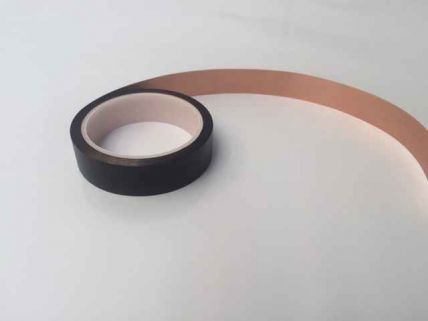

| 1.品名/料号（Product Name/Item No）: 散热铜箔胶带（Heat foil tape）/YQ15018-R | ||||||||
| 2.主要特征(Features):散热性、导电性、自粘性、耐高温性（Heat dissipation, electrical conductivity, self adhesion, high temperature resistance） | ||||||||
| 3.应用领域(Applications):用于电脑、通讯、电器、照明等; 主要功能为:起到导热作用,在发热体与散热器件之间形成良好的导热通路，与散热片,结构固定件(风扇)等一起组成散热模组.（For the computer, communications, electrical appliances, lighting, etc., the main function is: play the role of heat, in the heat of the body and A good thermal conduction path is formed between the cooling device, and the radiating plate, and the structure of the structure (fan) and so on.） | ||||||||
| 4.主要成份（Material）: | ||||||||
| ************************************************* | 导热涂层 | Thermal paint-coat | ||||||
| +++++++++++++++++++++++++++++++++++ | 铜箔基材 | copper foil | ||||||
| ********************************************* | 导热胶水 | Thermal conductive adhesive | ||||||
| ※※※※※※※※※※※※※※※※※※※※※ | 离型纸 | releasing paper | ||||||
| 项目（Item） | 单位（Unit） | 测试值（Value） | 说明（Description） | |||||
| 铜箔厚度 Thickness of copper foil | mm | 0.018±0.005 | ASTMD374 | |||||
| 涂层厚度 Thickness of paint-coat | mm | 0.003±0.001 | ASTMD374 | |||||
| 总厚度 Thickness of paint-coat | mm | 0.05±0.005 | ASTMD374 | |||||
| 比重 specific weight | g/ cm³ | 7.7±0.3 | ASTMD792 | |||||
| Continuous Use Temperature耐温范围 | ℃ | -40--200 | ZL Standard | |||||
| Thermal Comdrctivty W/m-k nominal导热系数 | W/m-k | 4-8 | Z轴方向 | ASTMD5470 | ||||
| 400W以上 | X-Y轴方向 | |||||||
| Resistivity电阻 | Ώ.cm | ≤0.05 | ASTMD257 | |||||
| Adhesive /粘着力 | kgf/inch | ＞1 | GB/T 2792-1998 | |||||
