一、characteristic
（1） Excellent impact resistance. Be suitable for gap filling to ensure excellent property of EMI shielding
（2） Excellent conductivity along the X axis Y axis and z axis.
（3） Excellent performance on conductive joint、electromagnetic shielding and ground connection.
（4） Be laminated with high peel off strength release paper for better die-cutting and application.
Constructure
@@@@@@@@@@@@@--------Conductive foam
********************---------Conductive Acrylic Adhesive
###############----------Conductive fabric
********************---------Conductive Acrylic Adhesive
&&&&&&&&&&&&&&&&&---------- Releasing Paper

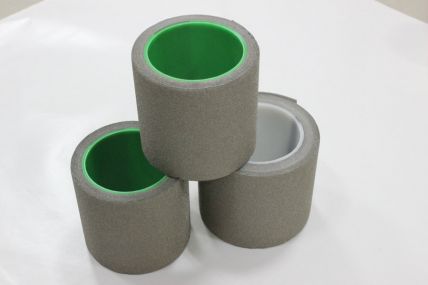

Produce name | Adhesive | Total thickness(mm) | Tape width/length |
YQ920530-G2 | Conductive acrylic | 0.5(±0.1) | 1000MM/ |
Specification
specification | |||
item | unit | specification | Test standard |
Base Material | / | foam | / |
Cladding Material | / | Ni/CU | / |
Weight | g/㎡ | 25-35 | Q-TNGD001-2009 |
Thickness | mm | 0.5±0.1 | Q-TNGD001-2009 |
Width | mm | 1000±10 | Q-TNGD001-2009 |
Length | m | ≤50 | Q-TNGD001-2009 |
Production Function
Item | Unit | specification | Test standard |
Shielding Effectiveness | dB | ≥40 | ASTM-D4935-99 |
Surface Resistivity | Ω/Sq | R≤1.0 | Q-TNGD001-2009 |
180° Peel adhesion (03m/min | G/25mm | 1.2KG/25mm | ASTMD-1000 |
五、Application
Excellent performance on conductive joint、electromagnetic shielding and ground connection.
Temperature-resistant：-10℃+65℃
六、Storage:
Storage temperature: 5-30℃
Warranty period: 6 months. Keep away from direct sunlight, high temperature.
Disclaimer: We shall not be liable for any loss or damage rising for direct sunlight, high temperature(≥40℃) and high humidity（≥70%RH ）.
Technical data above is for reference only. Please contact supplier for measured value.
